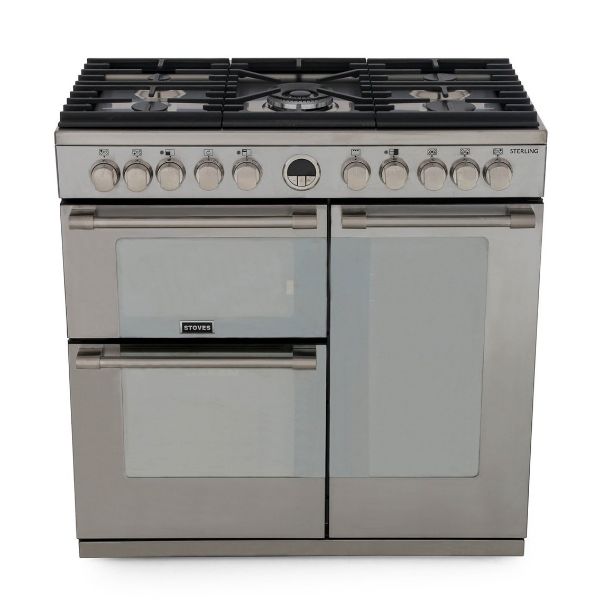

90cm Dual Fuel Range Cooker With A 5 Burner Gas Hob, Conventional Oven + Grill, Multifunction Main Oven and Tall Fanned Oven.
KEY FEATURES
3 Ovens With 172L Total Cooking Capacity
5 Burner Gas Hob With 4kW PowerWok™
Multifunction Main Oven With Equiflow™ Technology
Tall Titan Oven™ With Equiflow™ Fan
Maxi Grill™ With PRO-TRAC™ Telescopic Sliders

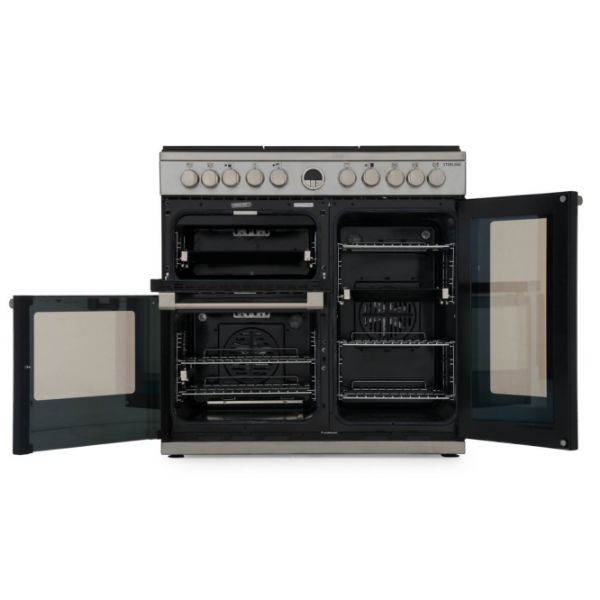

3 OVENS WITH 172L TOTAL COOKING CAPACITY
This model features a large Multifunction Main Oven, the large Titan™ Fanned Oven and a smaller Conventional Oven.
TALL TITAN OVEN™ WITH EQUIFLOW™ FAN
Our market leading Tall Titan Oven™ has a huge 87L (useable) capacity, Equiflow™ fan and 8 shelf positions so you have plenty of space for all your cooking needs. From batch baking to multi-meals and large family dinners; this flexible space has it covered.

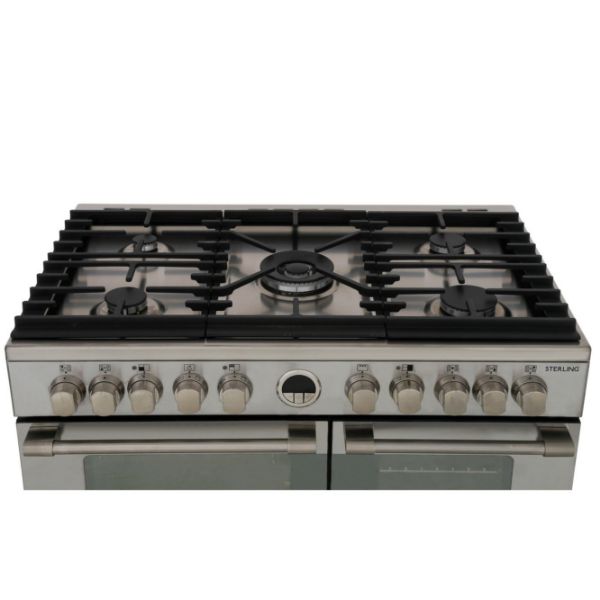

5 BURNER GAS HOB WITH 4KW POWERWOK™
With 5 burners to choose from, you'll have plenty of space for all your pots and pans. The 4kW PowerWok™ burner provides rapid and intense heat, perfect for your favourite stir fry recipe.
MAXI GRILL™ WITH PRO-TRAC™ TELESCOPIC SLIDERS
The deep full-width grill pan lets you make the most of the large cooking area. The Maxi-Grill comes with double extension telescopic sliders providing safe and easy access to food, without having to reach inside.
MULTIFUNCTION MAIN OVEN WITH EQUIFLOW™ TECHNOLOGY
The Stoves multifunction oven allows you to select from 11 different cooking functions and our Equiflow™ Technology provides excellent heat distribution, so you'll always get the best results, whatever you're making.
This oven is also available in black - contact us for more details today!
Product Summary
Product Description - 90cm Dual Fuel Range Cooker
Fuel - Dual Fuel
Number Of Ovens - 3
Gas Hob
Number Of Burners/Elements - 5 Gas Burners
Hotplate Type - Pressed Metal
Controls Position - Fascia
Burner 1 (kW) - Medium (2.0)
Burner 2 (kW) - Small (1.0)
Burner 3 (kW) - PowerWok™ (4.0)
Burner 4 (kW) - Large (3.0)
Burner 5 (kW) - Medium (2.0)
Cast Iron Pan Supports - Yes
Matte Burner Caps - Yes
Flat Burner Caps - Yes
Automatic Ignition - Yes
Flame Safety Device - Yes
Cavity 1
Position - Top Left
Main/Second/Third/Fourth Oven - Third Oven
Function - Conventional Oven + Maxi-Grill™
Fuel - Electric
Number Of Functions - 3
Variable Rate Dual Circuit Electric Grill - Yes
Conventional Electric Oven - Yes
Top Heat Only - Yes
Cavity 1 Features
Energy Rating - A
Actual Capacity (Litres) - 37 Litres
Usable Capacity (Litres) - 31 Litres
Usable Cavity Dimensions (HxWxD mm) - 180 x 420 x 430
Power (kW) - Oven (1.4) + Grill (2.7)
Energy Consumption (kWh) - 0.67kWh
Number Of Shelf Positions - 2
Pro-Trac™ Double Extending Telescopic Sliders - Yes
Number Of Telescopic Fixing Positions - 2
Usable Area Of Shelves (WxD mm) - 407 x 357
Easy Clean Enamel - Yes
Door Type - Glass With Matt Black Capping
Door Opening - Drop-Down
Viewing Window - Yes
Door Glazing - Double
Door Colour - Mirrored
Handle Style - Metal
Handle Colour - Satin Nickel Brush Effect
Cavity 2
Position - Bottom Left
Main/Second/Third/Fourth Oven - Main Oven
Function - Multifunction Oven
Fuel - Electric
Number Of Functions - 13
Programmable Oven - Yes
Variable Rate Electric Grill - Yes
Conventional Electric Oven - Yes
Fanned Electric Oven - Yes
Defrost - Yes
Intensive Bake (Top, Bottom + Fan) - Yes
Top Heat Only - Yes
Base Heat Only - Yes
Base Heat With Fan - Yes
Grill With Fan - Yes
Slow Cook - Yes
Pizza Function - Yes
Keep Warm Function - Yes
Bread Proving - Yes
Cavity 2 Features
Energy Rating - A
Actual Capacity (Litres) - 64 Litres
Usable Capacity (Litres) - 54 Litres
Usable Cavity Dimensions (HxWxD mm) - 325 x 420 x 395
Power (kW) - Oven (2.0) + Grill (1.7)
Energy Consumption (kWh) - 0.77 (Conventional) + 0.73 (Forced Air)
Number Of Shelves - 2
Number Of Shelf Positions - 6
Pro-Trac™ Double Extending Telescopic Sliders - Yes
Number Of Telescopic Fixing Positions - 4
Usable Area Of Shelves (WxD mm) - 407 x 357
Oven Light - Yes (Halogen)
Easy Clean Enamel - Yes
Door Type - Glass With Matt Black Capping
Door Opening - Side
Viewing Window - Yes
Door Glazing - Double
Door Colour - Mirrored
Handle Style - Metal
Handle Colour - Satin Nickel Brush Effect
Cavity 3
Position - Right
Main/Second/Third/Fourth Oven - Second Oven
Function - Titan™ Tall Fanned Oven
Fuel - Electric
Number Of Functions - 4
Fanned Electric Oven - Yes
Slow Cook Function - Yes
Keep Warm Function - Yes
Bread Proving - Yes
Cavity 3 Features
Energy Rating - A
Actual Capacity (Litres) - 94 Litres
Usable Capacity (Litres) - 87 Litres
Usable Cavity Dimensions (HxWxD mm) - 620 x 350 x 395
Power (kW) - 2.5kW
Energy Consumption (kWh) - 0.94kWh
Number Of Shelves - 3
Number Of Shelf Positions - 8
Pro-Trac™ Double Extending Telescopic Sliders - Yes
Number Of Telescopic Fixing Positions - 8
Usable Area Of Shelves (WxD mm) - 339 x 357
Oven Light - Yes (Halogen)
Easy Clean Enamel - Yes
Door Type - Glass
Door Opening - Side
Viewing Window - Yes
Door Glazing - Double
Door Colour - Mirrored
Handle Style - Metal
Handle Colour - Satin Nickel Brush Effect
Timer
Maxi Clock™ LED Touch Control Programmer - Yes (Cavity 2)
Timer Colour - White
Features
Fascia Cooling System - Yes
Adjustable Feet - Yes
Rear Wheels - Yes
Accessories
Removable Cast Griddle Plate - Yes
Full Width Deep Oven Pan - Yes (2)
Full Width Oven Pan - Reversible Trivet - Yes (2)
Oven Pan Handle - Yes (2)
LPG Conversion Kit (Available For Purchase Separately) - Yes
Removable Parts (For Cleaning)
Hob Burners - Yes
Pan Supports - Yes
Inner Door Glass - Yes
Shelves - Yes
Telescopic Sliders - Yes
Shelf Guides - Yes
Installation
Gas Type - Nat Gas
Gas Inlet Type - 1/2" BSP Female
Gas Inlet Position - Rear Right
LPG Convertible - Yes
Terminal Block Position - Rear Left
Electrical Connection - Yes
Supply Voltage (V) - 240V
Phase - Single/3 Phase
Total Electrical Power Load (kW) - 8.45kW
Total Gas Power Load (kW) - 12.0kW
Fuse Size (A) - 32A
Packed Dimensions
Height (mm) - 1045mm
Width (mm) - 1045mm
Depth (mm) - 740mm
Weight (kg) - 88kg
Product Dimensions
Height (mm) - 900-930mm
Width (mm) - 896mm
Depth (mm) - 600mm
Weight (kg) - 81kg
