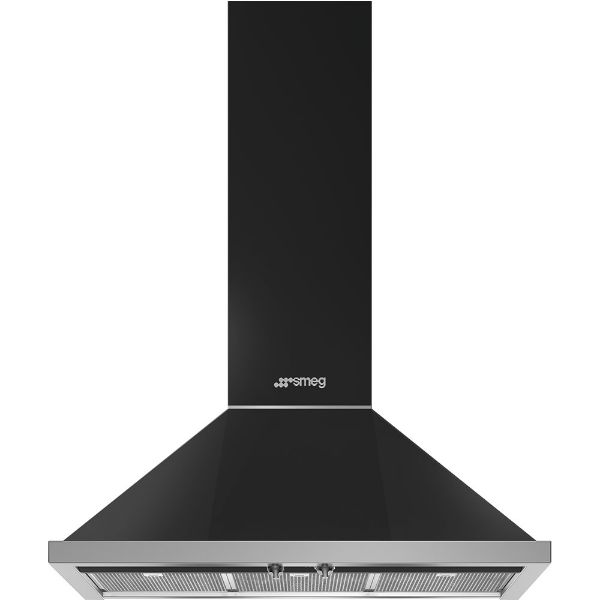

Smeg KPF9AN 90cm Portofino Chimney Hood in Anthracite

Inspired by the rich tones of the Italian Riviera, meet Smeg's freshest design yet, perfect for contemporary living. Portofino by Smeg.

Portofino hoods are elegant and co-ordinate with the Portofino cooker range, whilst offering solid extraction and low noise levels.

Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.

Venting/ducting out provides optimum extraction of cooking fumes by expelling them outside, using a vent kit (available as an optional accessory). This hood has a 150 mm vent outlet, so you can choose between the following options:

• SP150 - Simple vent kit for hoods with a 150 mm diameter vent outlet
• SP150FLAT - Comprehensive vent kit for hoods with a 150 mm diameter vent outlet

Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, see the accessory tab on the hood's specification.

A powerful intensive speed can be selected when quick extraction is needed. Whether you’re creating a sizzling stir fry or preparing an aromatic curry, even the strongest cooking odours will be removed in no time.

These lights are long-lasting, energy-saving, and perfectly illuminate the work surface below. They can be switched on regardless of the fans and used simply to create ambient lighting in the kitchen.

Type

• Product family: Hood
• Hood Type: Chimney Cooker Hoods
• Hood width: 90 cm
• Extraction: Ducted out or re-circulation possible
• EAN code: 8017709236366

Aesthetics

• Colour: Anthracite
• Aesthetics: Portofino
• Design: Chimney
• Material: Stainless Steel + Painted Material
• Type of steel: Brushed

Programs / Functions

• Intensive/turbo setting: Available when extra fast extraction is required
• Number of speeds: 3
• Intensive speed: Yes

Controls

• Control setting: Control knobs
• Control knobs: Portofino
• Number of controls: 2
• Controls colour: Steel effect

Technical Features

• Filters: Removes grease from steam during cooking
• Lights: Illuminates the cooking area or adds to kitchen ambience
• Number of lights: 2
• Light type: LED
• Light power: 2 W
• Light colour temperature: 4000 K
• Free outlet maximum capacity: 815 m³/h
• Motor power: 275 W
• Number of filters: 3
• Anti-grease filters: Stainless steel
• Minimum distance from GAS hob: 750 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Vent outlet: 150 mm
• Non-return valve: Yes

Performance / Energy Label

• Energy efficiency class (EEC): A+
• Fluid Dynamic Efficiency class (FDEC): A
• Grease Filtering Efficiency Class (GFEC): C
• Lighting Efficiency Class (LEC): A
• Annual Efficiency Consumption (AEChood): 40 kWh/year
• Fluid Dynamic Efficiency (FDE): 36.2
• Lighting Efficiency (LE): 78.2 lux/W
• Grease Filtering Efficiency (GFE): 78.5%
• Air flow at minimum speed (Qmin): 288 m³/h
• Maximum extraction rate: 630 m³/h
• Intensive extraction rate: 781 m³/h
• Airborne sound power emission at minimum speed (SPEmin): 48 dB(A)
• Airborne sound power emission at maximum speed (SPEmax): 67 dB(A)
• Airborne sound power emission at boost speed (SPEboost): 72 dB(A)
• Time increase factor (F): 1.00
• Energy Efficiency Index per first cavity: 40.3
• Measured air flow rate at best efficiency point (Qbep): 413 m³/h
• Measured air pressure at best efficiency point (Qbep): 476 Pa
• Measured electric power input at best efficiency point (Wbep): 151 W
• Normal Power of the light system (Wl): 2 W
• Average illumination of the light on the cooking surface (Emiddle): 172 lux
• Sound power level at highest setting (Lwa): 67 dB(A)

Electrical Connection

• Nominal power: 277 W
• Voltage: 220-240 V
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1000 mm

Speed 1

• Extraction rate (IEC 61591): 288 m³/h
• Noise level (IEC 60704-2-13): 48 dB(A)
• Power: 173 W

Speed 2

• Extraction rate (IEC 61591): 421 m³/h
• Noise level (IEC 60704-2-13): 63 dB(A)
• Power: 199 W

Speed 3

• Extraction rate (IEC 61591): 630 m³/h
• Noise level (IEC 60704-2-13): 67 dB(A)
• Power: 223 W

Intensive Speed

• Extraction rate (IEC 61591): 781 m³/h
• Noise level (IEC 60704-2-13): 72 dB(A)
• Power: 224 W

Logistic Information

• Dimensions of the product (HxWxD): 1227 x 896 x 495 mm
• Width: 896 mm
• Depth: 495 mm
• Product height: 1227 mm
• Net weight: 18.220 kg
• Gross weight: 24.410 kg
• Packed width: 1000 mm
• Packaged depth: 520 mm
• Packed height: 680 mm
• Dimensions of the packed product (HxWxD): 680 x 1000 x 520 mm
• Maximum stackability: 5
• Type of packaging: Cardboard

Packaging Composition

• Paper & cardboard: 4.152 kg
• Polystyrene: 0.800 kg
• Wood: 0.300 kg
• Plastic: 0.123 kg
