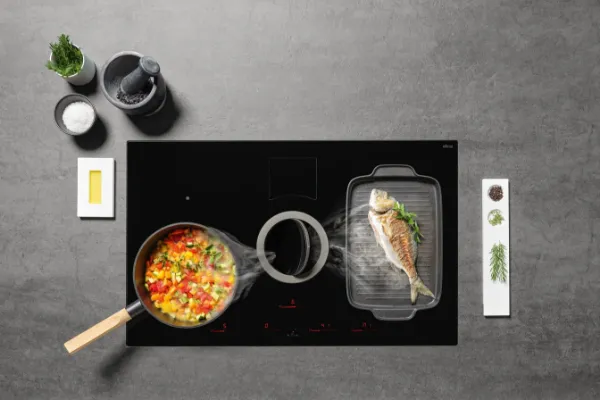

Contemporary design, cutting-edge performance. Concealed within this appliance lies an ultra-powerful extraction system: its aesthetic impact along with the distinctive technologies and functions are remarkable. The linear surface allows you to freely move the pots on the hob and makes cleaning a breeze. The extraction speed automatically adjusts based on the vapours and odours, improving air quality and reducing energy use. The odour, grease and moisture filters can last up to 3 years, reducing environmental impact.
Class A++ energy rating.
The user-friendly control interface is easy to use; the filters are easy to remove and there is a valve for draining spills.
Generic Data
WEIGHT (KG)
Duct-out: 25.5
Filtering: 29.55
FINISHING
Black glass
DIMENSIONS (CM)
83x51,5x21
ENERGY CLASS
A+
CUT OUT
80,7x49,2 cm
TOTAL ABSORPTION
7,4 kW
Extraction
AIRFLOW MIN DUCT-OUT
135m³/h
AIRFLOW MAX DUCT-OUT
500m³/h
AIRFLOW BOOST DUCT-OUT
630m³/h
AIRFLOW MIN FILTERING
110m³/h
AIRFLOW MAX FILTERING
400m³/h
AIRFLOW FILTERING
550m³/h
SUCTION SPEED
5,1m/s
NOISE LEVEL MIN-MAX ASPIRATION
33db(A) - 66db(A)
NOISE LEVEL MIN-MAX FILTER
39db(A) - 72db(A)
CONTROLS
9S+B Slider touch control
ABSORPTION
175 W
Cooking
CONTROLS
9P+B Touch control direct slider
VOLTAGE
220-240V
POWER LIMITATION
3,1kW - 4,5kW
NUMBER OF BRIDGE ZONES
2
FRONT LEFT COOKING ZONE
OCTA 21x19,1 cm - 2,1/3 kW
RIGHT FRONT COOKING ZONE
OCTA 21x19,1 cm - 2,1/3 kW
REAR LEFT COOKING ZONE
OCTA 21x19,1 cm - 2,1/3 kW
REAR RIGHT COOKING ZONE
OCTA 21x19,1 cm - 2,1/3 kW
