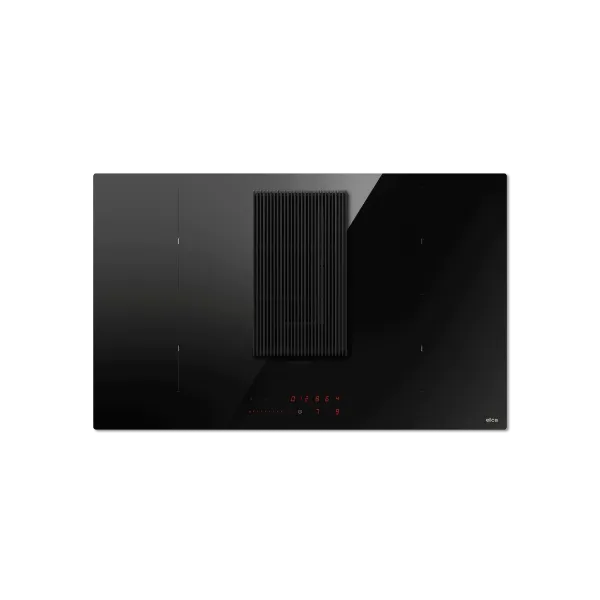

Elica NT-PRIME-RC Venting Hob in Black

A hob with a breathtaking design: the tempered black glass and central grille accentuate its lines, setting the stage for a totally new cooking experience.

This induction hob with integrated extraction combines aesthetic appeal with great features.

Four separate cooking zones surround the grill that conceals the super integrated hood, which automatically controls both powerup and extraction rates.

The filters capture smoke, odours, and vapours; they are easy to remove for cleaning and regeneration purposes. A special valve for draining accidental spills into the vent ensures the utmost hygiene.

Generic Data
WEIGHT (KG)
25
FINISHING
Black glass + aluminium cast iron effect
DIMENSIONS (CM)
83x51,5x25
ENERGY CLASS
A
CUT OUT
75x49 cm
TOTAL ABSORPTION
7,4 kW

Extraction
AIRFLOW MIN DUCT-OUT
135m³/h
AIRFLOW MAX DUCT-OUT
535m³/h
AIRFLOW BOOST DUCT-OUT
620m³/h
AIRFLOW MIN FILTERING
225m³/h
AIRFLOW MAX FILTERING
460m³/h
AIRFLOW FILTERING
535m³/h
SUCTION SPEED
5,1m/s
NOISE LEVEL MIN-MAX ASPIRATION
44db(A) - 63db(A)
NOISE LEVEL MIN-MAX FILTER
51db(A) - 67db(A)
CONTROLS
4S+B Slider touch control
ABSORPTION
160 W

Cooking
CONTROLS
9P+B slider touch control
VOLTAGE
220-240V
POWER LIMITATION
3,1kW - 4,5kW
FRONT LEFT COOKING ZONE
Ø 16 cm - 1,2/1,4 kW
RIGHT FRONT COOKING ZONE
Ø 16 cm - 1,2/1,4 kW
REAR LEFT COOKING ZONE
Ø 20 cm - 2,3/3 kW
REAR RIGHT COOKING ZONE
Ø 20 cm - 2,3/3 kW
