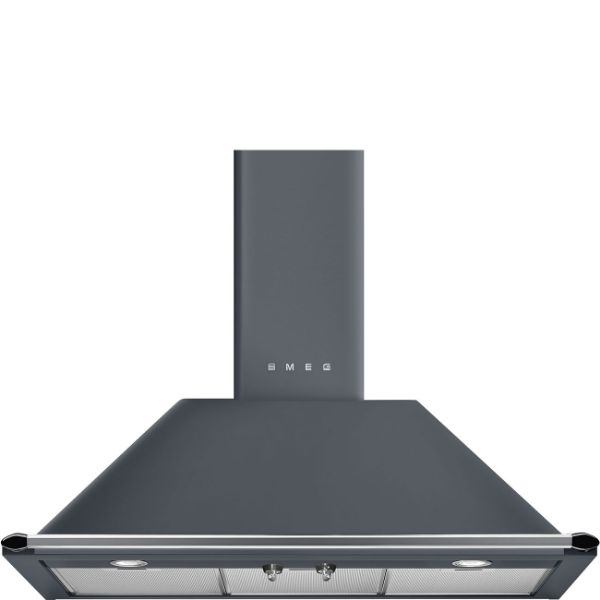

Smeg KT90GRE 90cm Victoria Chimney Hood in Slate Grey

Victoria Aesthetics
Bringing to mind the curved style of retro design, Smeg has introduced hoods to complement the traditional ‘Victoria’ range.

Attention to Detail
These hoods are constructed from a heat-moulded material with soft, curved, and unbroken corners without joins, creating a very pleasing effect that is also practical to keep clean. The silver bar at the front coordinates with the ‘Victoria’ style, completing the design of the hood.

Intensive Function
The intensive function allows the hood to operate at maximum power, speeding up the elimination of the most persistent odours and ensuring a purified environment.

Type

• Product family: Hood
• Hood type: Decorative wall hood
• Hood width: 90 cm
• Extraction: Extraction
• EAN code: 8017709303785

Aesthetics

• Colour: Slate Grey
• Finishing: Glossy
• Aesthetic: Victoria
• Design: Chimney
• Material: Painted material
• Type of steel: Brushed

Programme / Functions

• Intensive/turbo setting: Yes (for extra fast extraction)
• No. of speeds: 3
• Intensive speed: Yes

Controls

• Control setting: Control knobs
• Control knobs: Victoria
• No. of controls: 2
• Controls colour: Steel effect

Technical Features

• Filters: Yes (to remove grease from steam)
• Lights: Yes (to illuminate the cooking area or add ambience)
• No. of lights: 2
• Light type: LED
• Light power: 1 W
• Light colour temperature: 3000 K
• Free outlet maximum capacity: 820 m³/h
• Motor power: 275 W
• No. of filters: 3
• Anti-grease filters: Aluminium
• Minimum distance from GAS hob: 750 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Vent outlet: 150 mm
• Non-return valve: Yes

Performance / Energy Label

• Energy efficiency class (EEC): A
• Fluid Dynamic Efficiency class (FDEC): A
• Grease Filtering Efficiency Class (GFEC): C
• Lighting Efficiency Class (LEC): A
• Annual Energy Consumption (AEChood): 59 kWh/a
• Fluid Dynamic Efficiency (FDE): 30
• Lighting Efficiency (LE): 102.3 lux/W
• Grease Filtering Efficiency (GFE): 76.6%
• Airflow at minimum speed (Qmin): 334 m³/h
• Airflow at maximum speed (Qmax): 567 m³/h
• Airflow at boost speed (Qboost): 788 m³/h
• Sound Power Emission at minimum speed (SPEmin): 49 dB(A)
• Sound Power Emission at maximum speed (SPEmax): 62 dB(A)
• Sound Power Emission at boost speed (SPEboost): 69 dB(A)
• Time increase factor (F): 0.9
• Energy Efficiency Index: 52.4
• Measured air flow rate at best efficiency point (Qbep): 438 m³/h
• Measured air pressure at best efficiency point (Pbep): 434 Pa
• Measured electric power input at best efficiency point (Wbep): 176 W
• Nominal power consumption of the light system (WL): 2 W
• Average illumination of the light on the cooking surface (Emiddle): 225 lux
• Sound power level at highest setting (Lwa): 62 dB(A)

Electrical Connection

• Electrical connection rating: 278 W
• Voltage: 220-240 V
• Frequency: 50-60 Hz
• Power supply cable length: 1000 mm

Speed 1

• Extraction rate (IEC 61591): 334 m³/h
• Noise level (IEC 60704-2-13): 49 dB(A)
• Power: 199 W

Speed 2

• Extraction rate (IEC 61591): 439 m³/h
• Noise level (IEC 60704-2-13): 57 dB(A)
• Power: 231 W

Speed 3

• Extraction rate (IEC 61591): 567 m³/h
• Noise level (IEC 60704-2-13): 62 dB(A)
• Power: 260 W

Intensive Speed

• Extraction rate (IEC 61591): 788 m³/h
• Noise level (IEC 60704-2-13): 69 dB(A)
• Power: 280 W

Logistic Information

• Product dimensions (mm): 740 x 895 x 530
• Width: 895 mm
• Depth: 530 mm
• Product height: 740 mm
• Net weight: 16.5 kg
• Gross weight: 21.4 kg
• Packed width: 965 mm
• Packed depth: 515 mm
• Packed height: 680 mm
• Packed product dimensions: 680 x 965 x 515 mm
• Type of packaging: Cardboard

Packaging Composition

• Paper & cardboard: 2.66 kg
• Polystyrene: 0.8 kg
• Wood: 0.3 kg
• Plastic: 0.087 kg
