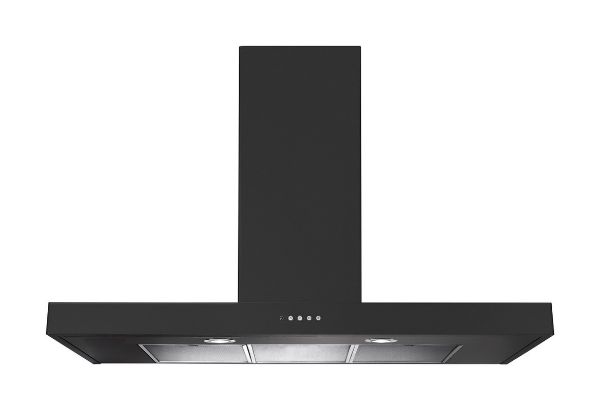

Rangemaster 119520 90cm Flat Hood Cooker Hood in Slate - UNBHDS90SL/

Falcon Flat 90cm Wall-Mounted Cooker Hood – Contemporary Style with Powerful Performance

With its sleek, minimalist design, the Falcon Flat Hood is the perfect final touch to a modern kitchen. This 90cm wall-mounted cooker hood combines contemporary aesthetics with powerful extraction, helping to keep your cooking environment fresh and grease-free.

Featuring front-mounted touch controls, it offers intuitive fan speed selection and convenient operation of the integrated LED lighting. Whether you prefer ducted or recirculating installation, this versatile hood fits seamlessly into a range of kitchen layouts. Available in three sizes and six stylish colours to match your space.

Key Features:

• Extraction Rate: Up to 620 m³/h for efficient odour and grease removal
• Extraction Type: Suitable for both ducted and recirculating setups
• Touch Controls: Front-mounted for quick and easy adjustments
• LED Lighting: Bright, energy-efficient illumination over your hob
• Sleek Design: Flat, modern appearance to complement contemporary kitchens

Product Code: 119520

Product Dimensions (HxWxD): 745–955 x 898 x 470 mm

Warranty: 2 years parts and labour

Enhance your kitchen with the Falcon Flat Hood – a stylish and effective solution for modern homes.

Product Overview

• Brand: Rangemaster

• Model: UNBHDS90SL/

• Type: 90cm Flat Chimney Hood

• Colour: Slate

• Installation Type: Wall-mounted

• Extraction Mode: Ducted or Recirculating

• Lighting Type: Integrated LED

• Lighting Effectiveness: 240 lux

Performance & Airflow

• Flow Rate at Best Efficiency Point (BEP): 411 m³/h

• Static Pressure at BEP: 389 Pa

• Electric Power Input at BEP: 187 W

• Grease Filtering Efficiency (GFE): 75.1%

• Off Mode Power Consumption: 0.40 W

Extracted Air Flow (m³/h)

• Setting 1 (Working Point): 300

• Setting 1 (Free Blowing): 310

• Setting 2 (Working Point): 460

• Setting 2 (Free Blowing): 480

• Setting 3 (Working Point): 620

• Setting 3 (Free Blowing): 640

• Boost (Working Point): 700

• Boost (Free Blowing): 730

Noise Levels (dB(A))

• Setting 1: 52

• Setting 2: 62

• Setting 3: 69

• Boost: 71

Energy Efficiency (Fiche 65/2014)

• Annual Energy Consumption: 76.7 kWh/year

• Energy Efficiency Class: B

• Fluid Dynamic Efficiency: 23.70 (Class B)

• Lighting Efficiency: 109.0 (Class A)

• Grease Filtering Efficiency: 75.1% (Class C)

Airflow Classification (m³/h)

• Normal Use (Min/Max): 300 / 620

• Boost Mode: 700

Acoustic Power Emissions (dB(A))

• Normal Use (Min/Max): 52 / 69

• Boost Mode: 71
