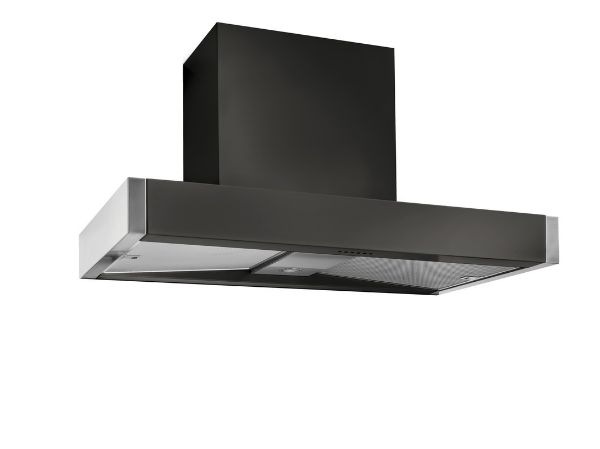

Mercury MHDSC1000AB 93940 1000 Slab Chimney Hood in Ash Black (Satin)

Powerful and stylish, the Mercury 100cm Extraction Canopy is designed to keep your kitchen fresh while complementing your Mercury Range cooker.

Featuring a variable speed centrifugal fan, removable air filters, and integral spotlights, this extraction canopy provides highly effective hob illumination. Its sleek slab-shaped design blends seamlessly with contemporary kitchen aesthetics.

With four speed settings, including a temporary booster mode, this cooker hood can extract air at an impressive rate of up to 795 m³ per hour, efficiently removing odours and steam. Rated A for energy efficiency, it helps to reduce running costs while delivering powerful performance.

Available in a selection of colours to complement or contrast your kitchen, the Mercury Extraction Canopy is the perfect finishing touch for a stylish and functional cooking space.

Key Features

• Noise Level: 61.6 dB
• Colour: Ash Black (Satin)
• Energy Rating: A
• Number of Speed Settings: 3

Technical Specifications

• SKU: MHDSC1000AB/
• Weight: 28.00 kg
• Light Power: 2 W
• Filter Type: Cassette
• Energy Efficiency Index (EEI): 48.1
• Fluid Dynamic Efficiency Class: A
• Fluid Dynamic Efficiency (FDE): 32.1
• Flow Rate at Best Efficiency Point (BEP): 481.2
• Static Pressure at BEP: 439
• Electric Power Input at BEP: 182.6 W
• Time Increase Factor (F): 0.8
• Lighting Efficiency Class: A
• Lighting Efficiency (LE): 38.8
• Grease Filtering Efficiency Class: B
• Grease Filtering Efficiency (GFE): 89.5
• Effectiveness of the Hob Light: 202
• Annual Energy Consumption (AEC): 57.1 kWh
• Standard Annual Energy Consumption (SAEC): 118.59 kWh
• Nominal Electric Power Input of Lighting System: 5.2 W

Extracted Air Flow Rates

• Setting 1 (Working Point): 244.1 m³/h
• Setting 1 (Free Blowing): 250 m³/h
• Setting 2 (Working Point): 378 m³/h
• Setting 3 (Working Point): 511 m³/h
• Setting 3 (Free Blowing): 525 m³/h
• Boost Setting (Working Point): 775.3 m³/h
• Boost Setting (Free Blowing): 795.8 m³/h

Noise Levels (Sound Power Level)

• Setting 1: 45.3 dB
• Setting 2: 53.5 dB
• Setting 3: 61.6 dB
• Boost Setting: 70.5 dB

Power Consumption

• Standby Mode: 0.27 W
