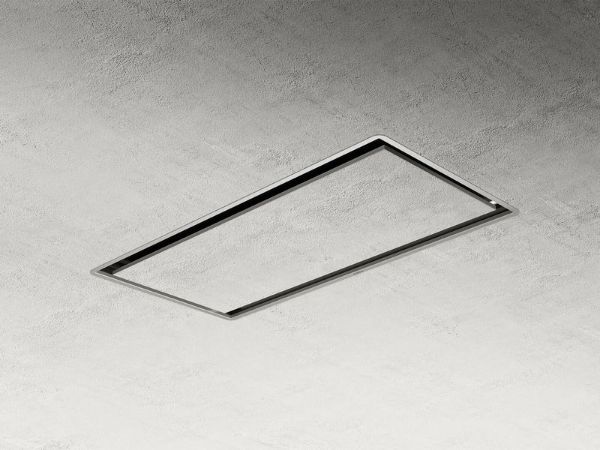

Elica ILLUS-PLS-RM-CS Illusion Plus 100cm Integrated Ceiling Cooker Hood in Custom Finish

The Elica Illusion PLS RM is a ceiling-integrated cooker hood designed to disappear seamlessly into your kitchen ceiling while delivering powerful and intelligent extraction. This model requires a separate remote motor (sold separately) in order to operate, allowing for highly effective ventilation with minimal noise and maximum design freedom.

Customisable to match your ceiling’s finish, this hood is ideal for compact kitchens or open-plan living, helping you free up space above your hob. Available with a stainless steel frame and a plasterboard panel that can be painted to blend perfectly with your decor, Illusion is all about discreet performance with stylish versatility.

Equipped with smart sensor technology, it automatically detects smoke, steam, and even harmful pollutants like cleaning fumes or cigarette smoke, activating the appropriate extraction power and switching off once the air is clean. You can also control the hood remotely via the Elica app or compatible voice assistants, adjusting extraction levels and lighting with ease.

Key Features:

• Requires a remote motor (sold separately) for operation
• Flush ceiling installation for a seamless, modern aesthetic
• Wi-Fi connectivity with app and voice control
• Smart sensor for automatic air quality detection and extraction
• Customisable design with paintable plasterboard panel
• LED lighting with adjustable tone (warm to cool) and dimmable brightness
• Long-life regenerable filters for up to 3 years’ use
• Quiet operation with advanced sound-reduction technology

With cutting-edge features like Comfort Silence, Airmatic smart extraction, and EcoFair energy-saving technology, the Elica Illusion is the perfect choice for homeowners who value clean air, quiet performance, and integrated design.

Key Features

• Speeds: 3 speeds + 2 booster power levels

• Maximum extraction rate (normal use): 515 m³/h

• Maximum extraction rate (booster): 840 m³/h

• Maximum noise level (normal use): 57 dB

• Maximum noise level (booster): 69 dB

• Airflow range: 230 – 840 m³/h

• Noise level range: 28 – 69 dB

• Energy efficiency rating: B

• Operation modes: Air extraction or recirculation

• Internet connected appliance: Yes

Design & Build

• Chimney flue included: No

• Controls: Remote control

• Finish: Custom finish

• Hood type: Ceiling integrated

• Motor: Remote (requires separate purchase)

• Range: Elica Illusion Plus Hood

• Remote control available: Yes

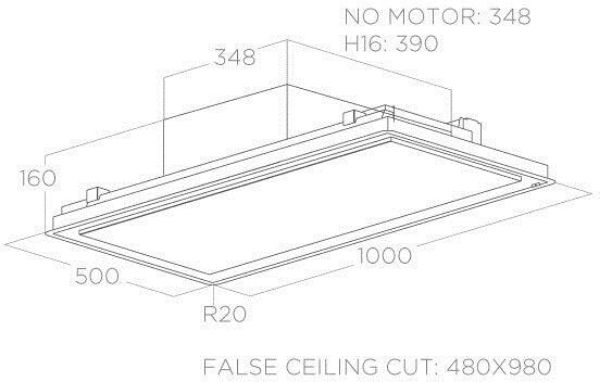

• Width: 100 cm

Lighting

• Type: 14 W LED

• Lighting class: A

• Number of lamps: 2

Advanced Features

• AIRMATIC (automatic adjustment of extraction power)

• Aluminium grease filters

• Comfort Silence (low-noise operation)

• Connectivity (smart features)

• Dim Light (adjustable lighting levels)

• Intensive Speed Function (for rapid extraction)

• Long Life Filter++ (high-efficiency, regenerable filters)

• Maintenance Alarm (alerts for filter cleaning/replacement)

• Super Easy Installation (user-friendly mounting system)

• Total Integration (seamless kitchen design)

• Tune White (adjustable LED light temperature)

Technical Specifications

• Annual energy consumption: 105.5 kWh/year

• Cord length: TBC

• Duct size: 220 x 90 mm

• Fluid class: B

• Grease filter efficiency class: F

• Total power absorption: 293 W

• Product code: ILLUS-PLS-RM-CS

Included Accessories

• Grease aluminium filters

• Remote control

Optional Accessories (Available Separately)

• Additional lighting kit

• Extension cable for remote motor

• Recirculating kits

• Remote motors

Associated Models

• ILLUS-PLS-16-WH

• ILLUS-PLS-16-BK

• ILLUS-PLS-16-CS

• ILLUS-PLS-30-WH

• ILLUS-PLS-30-BK

• ILLUS-PLS-30-CS

• ILLUS-PLS-RM-WH

Additional Information

• Some images are used for illustration purposes only.
